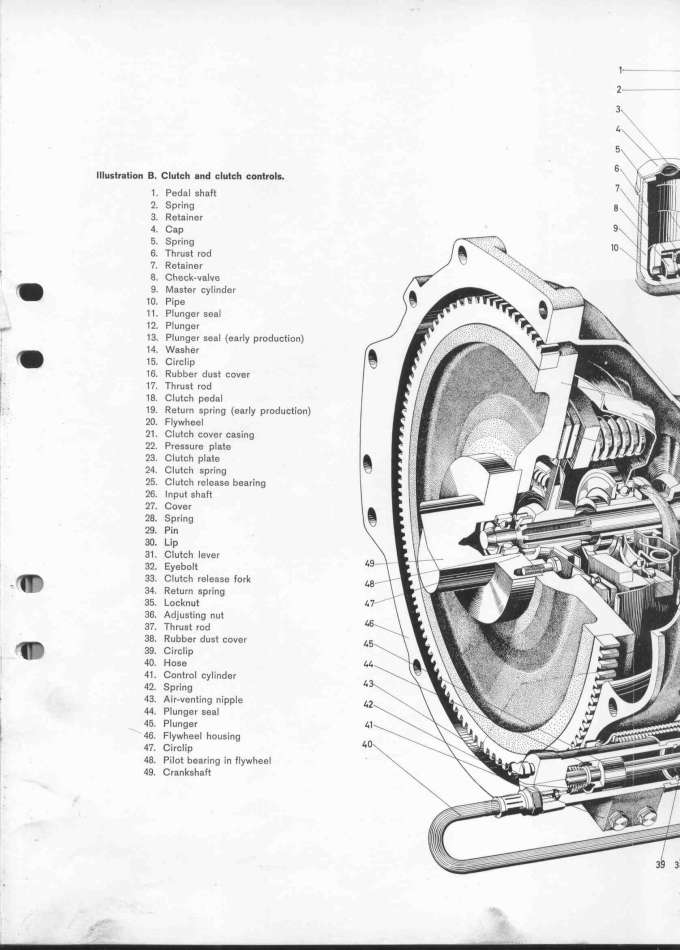

Z= - 3\ _\_ IIIuGtration B. Clutch a_d clutch co_trol_. 1. Pedal shaft 2 Spring 3. Ret8iner 4 Cap 5 Spring 6. Thrust rod 7 Retainer ' 8. Check-valve _ 9 Master cylinder 1O. Pipe 11. Plunger seal _ 12 Plunger 13. Plunger seal (early product_on) _ 14 Washer 15 Circlip _ 16 Rubber dust cover 17 Thrust rod __ 18 Clutch pedal 19 Return spring (early production) 2O. Flywheel 21. ClutCh cover casing 22 Pressure plate 23 Clutch pIate 24 Clutch spring 25 Clutch release bear'ing 26 Input shaft 27. Cover 28. Spring 29. Pin 3O. Lip 31. Clutcf lever 32. Eyebolt _ 33 Clutch rele8se fork _ _ 34 Return spring 35. Locknut 36. Adjusting nut 37. Thrust rod _ 38. Rubber dust cover 39 Circl_p 4O Hose 41. Control cylinder 42. Spring _ 43 Air-venting nipple 44. Plunger seal _ 45 Plunger ! 46. FlywheeI housing 47. Circlip 48. P_lot bearing in flywheel O9 Crankshaft
